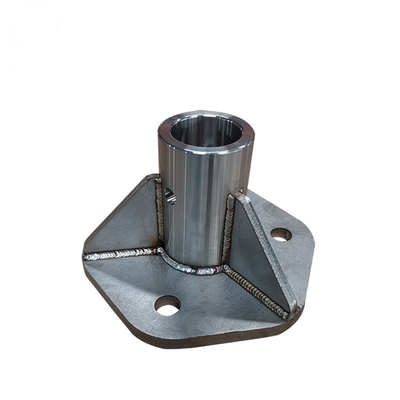

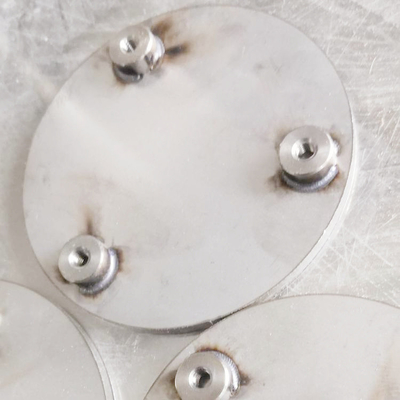

Sheet Metal Fabrication Laser Cutting Welding Sheet Metal Parts
Design Guidelines for Metal Welded Parts:
1. The principle of geometric continuity
2. Avoid overlapping welds
3. The root of the weld is preferentially compressed. The root of the weld is preferentially compressed. There are cracks at the root of the weld, which is easy to produce gaps. The tensile load capacity is less than the compressive load capacity.
4. Avoid riveted structures
5. Avoid sharp corners
6. Facilitate handling operations and inspection guidelines before and after welding
7. Design criteria for high strength and dynamic load of butt welds
8. Welding zone flexibility criteria
9. Minimal soldering
10. Weldability of materials, carbon content in carbon steel
11. Pre-treatment and post-treatment process
| Material |
Carbon steel(1008;1010;1020;1045;8620;4140;4130;D2) Stainless steel (201;202;301;304;304L;316;316L;416;420;430;440 and so on) Aluminum steel (1series;2series;3series;4series;5series;6series;7series;) Brass/copper/Bronze |
| Surface treatment |
hot dip galvanized; cold dip galvanized; zinc plating-coloring; powder coating Sandblasting; Anodizing color; Blackenning; Polishing; Brushing |
| Technics | laser cut, bend, weld, stamp |
| Sample | Need to pay sample fee |
| Certification | ISO9001:2015 |
| Tolerance | CNC machining:+/-0.005mm |
| Drawing Format | 3D/CAD/Dwg/IGS/STP |
| Color | Customized |
| Application | Metal printer consumables, metal inkjet printer accessories, metal detectors, metal cutting machinery, metal optical instruments, metal spinning machinery, metal recycling machinery, metal processing machinery parts, metal forging machinery, metal projectors, metal chassis shells. |
