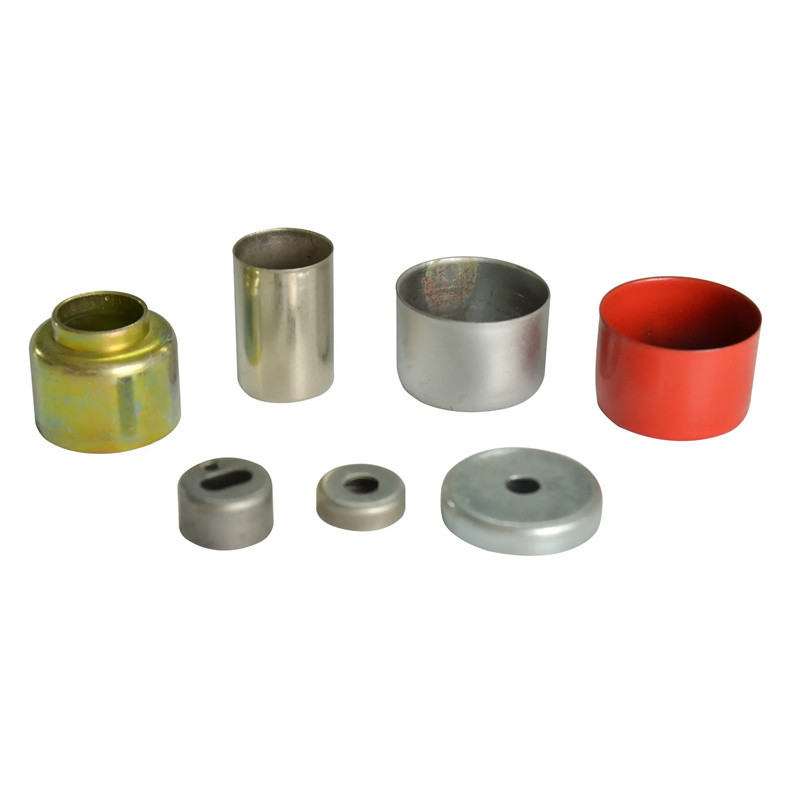

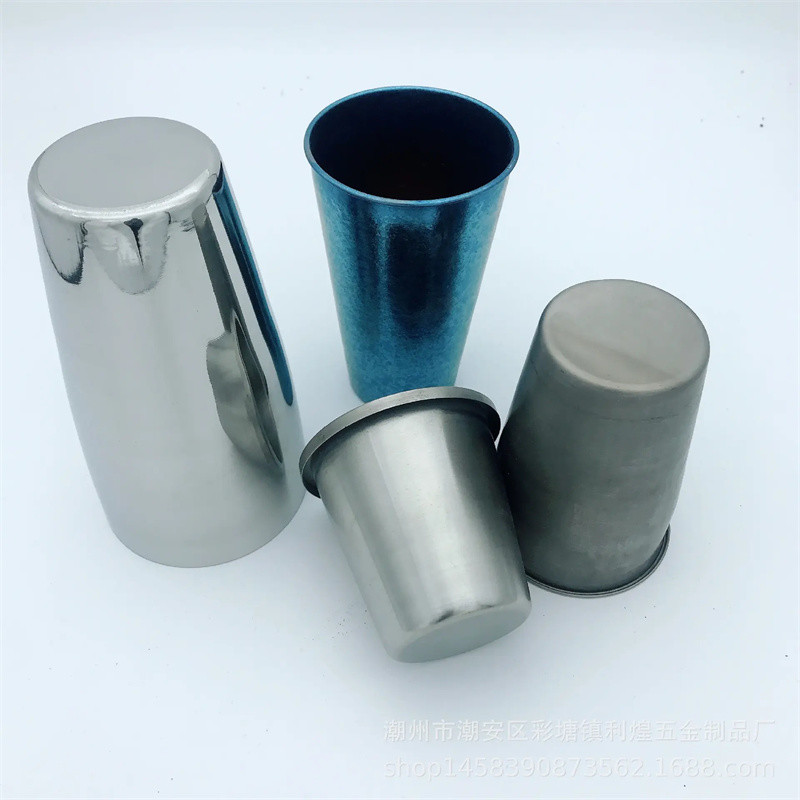

Cylindrical Deep Drawn Metal Fabrication Stamping Parts By Progressive Die
Metal deep drawn parts are widely used, and you can often see them in life. Drawing parts manufacturers need to understand the drawing characteristics of drawing parts during stamping processing in order to better control production. The cylindrical drawing part is a common metal stamping drawing part.
Features of cylindrical deep drawn parts
1. The stretching coefficient and stretching time of the cylindrical deep drawn parts. The stretching coefficient m refers to the ratio of the diameter of the cylindrical portion (or the diameter of the semi-finished product) to the diameter of the blank (or the semi-finished product) before and after stretching.
2. Partial stretching Stamping parts can only be stamped once, and the stamping coefficient is the ratio of the diameter d of the cylindrical part of the stamping part to the diameter D of the blank.
3. Some stretched parts require multiple punches before forming. The stretch factor can be used to indicate how much the material deforms during stretching. The smaller the value of the elongation coefficient m, the greater the degree of deformation.
Product parameters:
| Die Design & Open | We use the most advanced die design software Auto CAD, Solidworks, UG (dwg), we open dies and tools ourselves. |
| Our Capabilities: | tooling manufacturing, stamping, deep drawing, welding, tube bending and surface coating service |
| Range of Materials: | Metal sheets include carbon steel, stainless steel, alloy steel, aluminum, copper, etc. |
| Range of Material Thickness: | It is 0.2-10mm for punching, stamping, forming, no thickness limit for welding. |
| Processing Range: | Progression die, Cutting, Stamping, Deep drawing, Bending, Punching, Threading, Welding, Tapping, Riveting, Grinding |
| Surface Range: | Plating(zinc, nickel, chrome), electrophoresis, painting, powder coating, electrostatic spraying, hot dip galvanized, dacromet, anodic oxidation, blacking, polishing, anti-rust oil |
| Packaging | Our products are all packed in strong cartons and pallets/wooden cases to ensure zero damage. |
